Welcome to Proton Ply
IMPORTS - EXPORTS & SOURCING SINCE 1999
Textile & Yarns
With supplier base in all leading manufacturer countries we are partner with leading producer of Cotton & Polyester(Polyethylene Terephthalate (PET)).
Recyled Yarns & Fibres
PET bottles & other materials are converted to flakes which are turned into fibre and cut for spinning into yarn, these recycled fibres are just like virgin polyester fibres.
Packaging
We assure best quality PET Chips, PP Woven Fabrics, PP Woven Small Bags, PP Woven Jumbo Bags(FIBC) also known as Flexible Intermediate Bulk Containers or bulk bag.
Polymers
We export and import Industrial products like Polypropylene (PP),Polyethylene (PE),Poly Vinyl Chloride (PVC), PTA, MEG, Fuel Oil, Soda ash, Caustic Soda, Carbon Black
Agro
We are renowned suppliers of Phthalic Anhydride, Maleic Anhydride, Citric Acid, DOP, DINP, Urea, Sodium Hydro Sulfite, Natural Gypsum, Clinker.
Welcome to Proton Ply
From humble beginnings as plywood traders in 1975, Proton Ply Pvt. Ltd. has grown over the years to establish itself as a leading Plywood manufacturer in India. With our manufacturing unit at the port city of Visakhapatnam, the company has the location advantage of an efficient sea port along with vastly organized transport facilities connecting every nook and corner of the country.
We have modern and updated machinery along with a professional team of committed, hardworking individuals. The company has clear, transparent and explicit policies of acquiring the best available raw materials for plywood. The Plywood on offer is made of specially imported timber, and the in-house Resin plant coupled with state of the art testing laboratory gives us a technical edge. Our commitment to customers is to provide plywood with unparalleled quality at an unbeatable price.
We have modern and updated machinery along with a professional team of committed, hardworking individuals.
The company has clear, transparent and explicit policies of acquiring the best available raw materials for plywood. The Plywood on offer is made of specially imported timber, and the in-house Resin plant coupled with state of the art testing laboratory gives us a technical edge. Our commitment to customers is to provide plywood with unparalleled quality at an unbeatable price.
Proton Ply offers you plywood that is made of Gurjan wood which is specially imported. With Quality as the foundation, we have a deep rooted commitment to Business Values and Customer Satisfaction. The Plant, Machinery, Timber we choose and the fundamentals on which our team operates ensure our products are manufactured to expected standards. Our Product Range Includes #Premium BWP, BWR and MR Grade Plywood, #BWP and MR Grade Blockboards and #Flush Doors
Plywood
Proton Ply is made from selected high density core and face which are treated with Anti termite additives and are further bonded with in-house specially manufactured Phenol Formaldehyde BWP Grade resin, which is Eco-Friendly and non-hazardous to human and animal. Swat Ply comes with double pressed thick face on both sides. Furthur, the finished plywood is subjected to proper chemical treatment with water soluble fixed type preservatives under vacuum pressure to ensure protection against wood destroying organisms and to make the product borer/termite proof and fungi free. SWAT Ply goes through seven step rigorous testing to make it dimensionally stable and anti warp in both dry and humid conditions.
Proton Ply Marine Grade is made of well selected pieces of core and face veneer which are bonded with Phenol Formaldehyde BWP Grade resin under high temperature and pressure. Furthur, the finished plywood is subjected to proper chemical treatment with water soluble fixed type preservatives under vacuum pressure to ensure protection against wood destroying organisms and to make the product insect, borer, termite and fungi free. This specific stress relieving treatment is also given to check anti- warp properties of plywood. The same makes it dimensionally stable in both excessive wet and dry condition throughout its life.
Submit Enquiry >>Blockboard
Proton Ply blockboard is manufactured with imported seasoned planks of Pinewood. The planks are first treated with special preservatives to resist borer, termite and fungi attacks, and then kiln dried at a technical temperature schedule. Our tough temperature treatment and other control parameters are rare in the industry and helps in getting balanced and straight planks to work with. With a high MOE and MOR factor, Proton Ply Blockboards are suitable for Indian conditions. They have high mechanical strength and are dimensionally stable and warp free.
Submit Enquiry >>
MARINE PLY
Proton Ply Marine Grade is made of well selected pieces of core and face veneer which are bonded with Phenol Formaldehyde BWP Grade resin under high temperature and pressure. Furthur, the finished plywood is subjected to proper chemical treatment with water soluble fixed type preservatives under vacuum pressure to ensure protection against wood destroying organisms and to make the product insect, borer, termite and fungi free. This specific stress relieving treatment is also given to check anti- warp properties of plywood. The same makes it dimensionally stable in both excessive wet and dry condition throughout its life.
< Submit Enquiry >>| Technical Specifications IS 710 | ||
| Test | ISI Requirement | Results |
| Moisture content | 5% - 15% | 12% |
| Glue shear strength in dry condition | a. Individual Min. 1100 Newton, b. Average 1350 Newton. |
a. 1550 Newton b. 1700 Newton |
| Glue shear strength | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 1300 Newton b. 1225 Newton |
| Glue Shear Strength in mycological test | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 960 Newton b. 1200 Newton |
| Tensile Strength: a. Parallel to grain direction b. Right angle to grain direction c. Sum of both directions |
a. Min. 420 Kgf./cm2 b. Min. 250 Kgf./cm2 c. Min. 845 Kgf./cm2 |
a. 540 Kgf./cm2 b. 370 Kgf./cm2 c. 910 Kgf./cm2 |

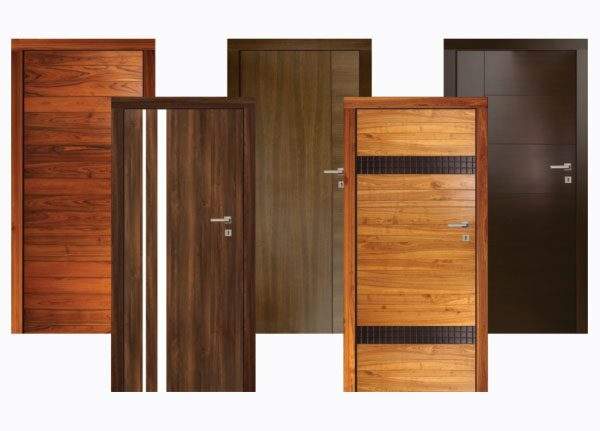

Flush Door
Proton Flush Doors are manufactured with imported pinewood and well maintained in-house resin. Our high tech manufacturing facilities coupled with stringent quality control measures at each stage of the manufacturing process ensure doors which are sturdy, elegant and dimensionally stable. Bonded with Boiling Water Proof grade, Synthetic Phenol Formaldehyde Resin {batch tested in our own hi-tech laboratories}, the doors are hot pressed under proper temperature and pressure to be de- lamination free. Thus Solid Flush Doors never bend or warp under normal conditions.
Submit Enquiry >>| TECHNICAL SPECIFICATIONS | ||
| Sr No | Description | Specification |
| 1 | Dimension and Squareness | a. Width - {+/-} 1mm b. Height - {+/-} 1mm |
| 2 | Moisture content | 08% - 10% |
| 3 | Flatness | Twist, Cupping and Warping within 1mm |
| 4 | Local Planeness | Depth of deviation at any point within 0.5mm |
| 5 | Flexure Resistance | Residual deflection within 0.1% of max deflection |
| 6 | Edge Loading | Max deflection - 5mm |
| Residual deflection - 0.5mm | ||
| Max lateral buckling - 2mm | ||
| Residual buckling - 0 mm | ||
| 7 | Shock Resistance | a. Light body impact - No visible damage after 25 blows at 4/5 shocks/min with 5 Kg sand bag. |
| b. Heavy body impact - No significant permanent deformation after 5 impacts with 30 Kg sand bag. | ||
| 8 | Buckling of Shutter | a. Initial Deflection - not more than 50mm. |
| b. Residual deflection - not more than 5 mm. | ||
| 9 | Slamming of Shutter | No visible damage at the end of 50 and 100 impacts |
| 10 | Misuse of door shutter | No permanent deformation |
| 11 | Varying humidity and atmospheric conditions | No visible warping, twisting and delamination |
| max departure from general planeness - 1% | ||
| Dimensional Recovery - 90% | ||
| 12 | End immersion | No delamination |
| 13 | Resistance to knife | Impossible to find the glue line, indicating excellent adhesion |
| 14 | Glue Adhesion | No de-lamination of glue line indicating excellent adhesion |
| 15 | Screw Withdrawal Strength{kg} | > 200 |
| 16 | Screw holding strength{kg} | >100 |
Film Faced Shuttering Plywood
REDUCE RECYCLE REUSE LETS MAKE THE WORLD GREENER
Proton Film Face Ply is made with selected hardwood veneers where BWP grade of Phenol Formaldehyde resin conforming to IS 848:1974 is used for bonding. The end product is durable, superior film faced shuttering Ply. The strength of the ply is in line with expected amount of load and the vibration caused while working with concrete. Different types of shuttering ply are available depending on density viz. 30kg, 34kg etc. A 30 Kg Solid shuttering ply easily gives 24 to 30 repetitions. Greater the density, more would be the re-use value..
Submit Enquiry >>
| Technical Specifications IS 4990 | ||
| Test | ISI Requirement | Results |
| Moisture content | 5% - 15% | 7.7% |
| Glue shear strength in dry condition | a. Individual Min. 1100 Newton, b. Average 1350 Newton. |
a. 1380 Newton b. 1680 Newton |
| Glue shear strength | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 1180 Newton b. 1340 Newton |
| Glue Shear Strength in mycological test | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 1210 Newton b. 1360 Newton |
| Tensile Strength: a. Parallel to grain direction b. Right angle to grain direction c. Sum of both directions |
a. Min. 325 Kgf./cm2 b. Min. 225 Kgf./cm2 c. Min. 600 Kgf./cm2 |
a. 630 Kgf./cm2 b. 395 Kgf./cm2 c. 990 Kgf./cm2 |
Flexi Ply
Design is an element of imagination and imagination cannot be restricted to straight lines and 90 degrees. Creative people feel limited by restricting their thoughts. Thus, for the flexible and imaginative minds Proton Ply presents the magical Flexi Ply, which can be moulded and bent into any shape without clipping, cracking, peeling or staining.
-
Advantages:
- Proton Flexi Ply is made in size 8' x 4' sheet which can be easily bent by hand
- Shapes/Curves can be formed without labour intensive efforts associated with bending of plywood
- No special equipment required to bend, fabricate or laminate
- Complex multi-radical shapes can be created that would otherwise be virtually impossible.
QUALITY CONTROL
We are ISO 14001 Certified company. During the assembly of a plywood, resin coated core veneers are placed along with dry wood panels. The assembled core and panels are then placed in hydraulic hot press at defined temperature and pressure. when pressure is applied then resin should penetrate the core and panel vertically for stronger bonding.
We ensure that we follow industry best practices during the entire process. All our working members are provided safety gear and they are skilled / trained which ensures highest quality output.
We are ISO 14001 Certified company. During the assembly of a plywood, resin coated core veneers are placed along with dry wood panels. The assembled core and panels are then placed in hydraulic hot press at defined temperature and pressure. when pressure is applied then resin should penetrate the core and panel vertically for stronger bonding.
We ensure that we follow industry best practices during the entire process. All our working members are provided safety gear and they are skilled / trained which ensures highest quality output.
